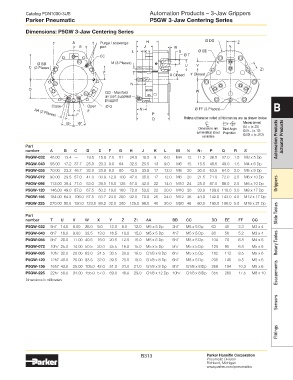

Page 314 - Parker - Parker Pneumatic

Catalog PDN1000-3US Automation Products – 3-Jaw Grippers
Parker Pneumatic P5GW 3-Jaw Centering Series

Dimensions: P5GW 3-Jaw Centering Series

A Purge / scavenge H Ø DD Z
B port J R C L
L K S Ø EE
CC Ø T
Ø BB M (3 Places) U V
C (2 Places
Z1
E Y Closed
X Closed
N
D
GG - Manifold W
air port supplied
plugged
Close Open Ø G B
F N1 Ø FF (3 Places)
F P
AA (2 Places)
Q Unless otherwise noted all tolerances are as shown below
15° 15° Metric (mm)
Dimensions are Third Angle (0.) = (±.25)
symmetrical about Projection (0.0) = (±.13)
centerline (0.00) = (±.013) Automation Products Actuator Products

Part
number A B C D E F G H J K L M N N1 P Q R S
P5GW-032 45.00 13.4 — 19.5 15.8 7.0 51 24.5 18.5 9 6.0 M4 12 11.5 36.5 37.0 1.5 M3 x 5 Dp
P5GW-043 56.00 17.2 37.7 25.0 20.3 9.0 64 32.5 25.5 13 9.0 M6 15 15.5 48.5 49.0 1.5 M4 x 6 Dp
P5GW-055 70.00 23.2 46.7 32.0 23.8 9.0 80 43.5 33.5 17 12.0 M8 20 20.0 63.5 64.0 2.0 M5 x 9 Dp
P5GW-072 90.00 29.5 57.0 41.0 30.9 12.0 100 47.0 35.0 17 12.0 M8 20 21.5 71.0 72.0 2.5 M6 x 10 Dp
P5GW-095 112.00 38.4 71.0 53.0 39.5 15.0 125 57.0 42.0 22 14.0 M10 24 25.0 87.0 88.0 2.5 M6 x 10 Dp Grippers
P5GW-120 146.00 49.0 87.0 67.5 50.2 19.0 160 72.0 53.0 22 20.0 M10 30 33.0 109.0 110.0 3.0 M8 x 17 Dp
P5GW-156 184.00 64.3 106.0 87.5 63.7 23.0 200 92.0 70.0 26 24.0 M12 36 43.0 142.0 143.0 4.0 M12 x 17 Dp
P5GW-225 270.00 90.5 150.0 123.0 89.2 32.0 300 125.0 99.0 40 30.0 M20 46 60.0 195.0 196.0 5.0 M16 x 21 Dp

Part Slide Tables
number T U V W X Y Z Z1 AA BB CC DD EE FF GG
P5GW-032 5h7 14.0 8.00 26.0 9.0 12.0 8.0 12.0 M5 x 5 Dp 3h7 M5 x 5 Dp 63 45 3.3 M3 x 4
P5GW-043 6h7 16.0 9.00 32.5 13.0 16.5 10.0 15.0 M5 x 5 Dp 4h7 M5 x 5 Dp 83 56 5.2 M3 x 4
P5GW-055 8h7 20.0 11.00 40.5 16.0 20.5 12.5 15.0 M5 x 5 Dp 5h7 M5 x 5 Dp 104 70 6.8 M4 x 6 Rotary Tables
P5GW-072 10h7 25.0 14.00 50.5 20.0 25.5 16.0 15.0 M5 x 5 Dp 5h7 M5 x 5 Dp 129 90 6.8 M5 x 6
P5GW-095 10h7 32.0 20.00 63.0 24.5 30.5 20.0 18.0 G1/8 x 8 Dp 6h7 M5 x 5 Dp 162 112 8.5 M5 x 6
P5GW-120 12h7 40.0 25.00 83.5 32.0 39.5 25.0 18.0 G1/8 x 8 Dp 6h7 M5 x 5 Dp 205 146 8.5 M5 x 6
P5GW-156 16h7 43.0 25.00 105.0 42.0 51.0 31.0 21.0 G1/8 x 8 Dp 8h7 G1/8 x 8 Dp 258 184 10.3 M5 x 6
P5GW-225 22h7 58.0 34.00 155.0 57.0 69.0 46.0 29.0 G1/8 x 12 Dp 10h7 G1/8 x 8 Dp 355 260 17.5 M8 x 10 Escapements
Dimensions in millimeters
