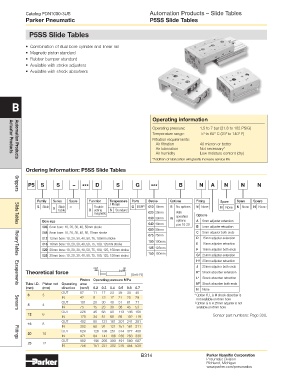

Parker Pneumatic P5SS Slide Tables

P5SS Slide Tables

• Combination of dual bore cylinder and linear rail
• Magnetic piston standard
• Rubber bumper standard
• Available with stroke adjusters
• Available with shock absorbers

B

Operating information

Operating pressure: 1.5 to 7 bar (21.8 to 102 PSIG)
Temperature range: -5° to 60° C (23° to 140° F)
Filtration requirements:
Air filtration 40 micron or better
Air lubrication Not necessary*
Air humidity Low moisture content (dry)
Actuator Products
*Addition of lubrication will greatly increase service life
Automation Products
Ordering Information: P5SS Slide Tables

P5 S S – *** D S G *** B N A N N N

Grippers
Family Series Spare Function Temperature Ports Stroke Options Fitting Spare Spare Spare
/ Finish
S Slide Slide — Double G BSPP 010 10mm B No options N None N None N None N None
S table D acting S Standard
magnetic 020 20mm With Options
030 30mm W specified
Bore size options A 5mm adjuster extension
040 40mm pos 16-20
Slide Tables
006 6mm bore: 10, 20, 30, 40, 50mm stroke B 5mm adjuster retraction
050 50mm
008 8mm bore: 10, 20, 30, 40, 50, 75mm stroke C 5mm adjuster both ends
075 75mm
012 12mm bore: 10, 20, 30, 40, 50, 75, 100mm stroke D 15mm adjuster extension
100 100mm
016 16mm bore: 10, 20, 30, 40, 50, 75, 100, 125mm stroke E 15mm adjuster retraction
125 125mm
020 20mm bore: 10, 20, 30, 40, 50, 75, 100, 125, 150mm stroke F 15mm adjuster both ends
150 150mm
025 25mm bore: 10, 20, 30, 40, 50, 75, 100, 125, 150mm stroke G † 25mm adjuster extension
Rotary Tables
H † 25mm adjuster retraction
J 25mm adjuster both ends
OUT IN
Theoretical force K* Shock absorber extension
(Unit: N)
Piston Operating pressure MPa L* Shock absorber retraction
Tube I.D. Piston rod Operating area M* Shock absorber both ends
Escapements
(mm) (mm) direction (mm 2 ) 0.2 0.3 0.4 0.5 0.6 0.7 N None
OUT 57 11 17 23 29 34 40
6 3 * Option K, L & M shock absorber is
IN 42 8 13 17 21 25 29 not available on 6mm bore
OUT 101 20 30 40 51 61 71 † Option G & H 25mm adjuster is not
8 4
IN 75 15 23 30 38 45 53 available on 6mm bore
Sensors
OUT 226 45 68 90 113 136 158
12 6 Sensor part numbers: Page 330.
IN 170 34 51 68 85 102 119
OUT 402 80 121 161 201 241 281
16 8
IN 302 60 91 121 151 181 211
OUT 628 126 188 251 314 377 400
20 10
IN 471 94 141 188 236 283 330
OUT 982 196 295 393 491 589 687
Fittings
25 12
IN 756 151 227 302 378 454 529
