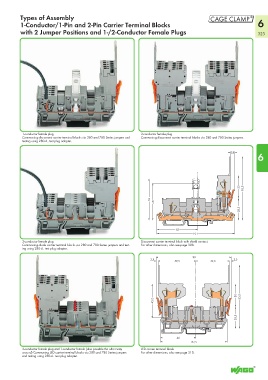

Types of Assembly
1-Conductor/1-Pin and 2-Pin Carrier Terminal Blocks 6
with 2 Jumper Positions and 1-/2-Conductor Female Plugs 323

1-conductor female plug 2-conductor female plug
Commoning disconnect carrier terminal blocks via 280 and 780 Series jumpers and Commoning disconnect carrier terminal blocks via 280 and 780 Series jumpers.
testing using 280-4.. test plug adapter.

6
5,5

30 83,5

54
48
28,5

53
101
2-conductor female plug Disconnect carrier terminal block with shield contact.
Commoning diode carrier terminal blocks via 280 and 780 Series jumpers and test- For other dimensions, also see page 308.
ing using 280-4.. test plug adapter.

99
2,5 49,5 44,5 2,5

30 83,5
45,2

28,5

46
87,5
2-conductor female plug and 1-conductor female (also possible the other way LED carrier terminal block
around) Commoning LED carrier terminal blocks via 280 and 780 Series jumpers For other dimensions, also see page 310.
and testing using 280-4.. test plug adapter.
