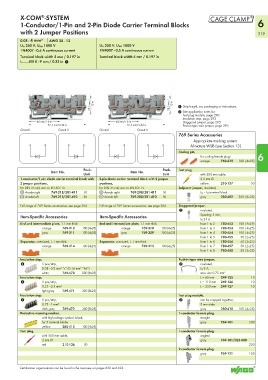

Page 321 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

X-COM -SYSTEM
®
1-Conductor/1-Pin and 2-Pin Diode Carrier Terminal Blocks 6
with 2 Jumper Positions 319
0.08 - 4 mm² AWG 28 - 12
U N 250 V, U RM 1000 V U N 250 V, U RM 1000 V
1N4007 - 0.5 A continuous current 1N4007 - 0.5 A continuous current
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in
L 8 - 9 mm / 0.33 in 1

28,5 mm / 1.12 in 28,5 mm / 1.12 in 1 Strip length, see packaging or instructions.
2 See application notes for:
Test plug module, page 290
Insulation stop, page 293
46 mm/1.6 in 46 mm/1.6 in Staggered jumper, page 295
87,5 mm/3.44 in 87,5 mm/3.44 in Push-in type wire jumper, page 295
Circuit I Circuit II Circuit I Circuit II
769 Series Accessories
Appropriate marking system:
Miniature WSB (see Section 13)
Coding pin,
for coding female plugs 6
orange 769-435 100 (4x25)
Pack. Pack. Test plug,
Item No. Unit Item No. Unit with 500 mm cable,
1-conductor/1-pin diode carrier terminal block with 2-pin diode carrier terminal block with 2 jumper 2.3 mm Ø
2 jumper positions, positions, yellow 210-137 50
for DIN 35 rail, acc. to EN 60715 for DIN 35 rail, acc. to EN 60715 Adjacent jumper, insulated,
Anode right 769-218/281-411 50 Anode right 769-208/281-411 50 I N = I N terminal block
Anode left 769-218/281-410 50 Anode left 769-208/281-410 50 gray 280-402 200 (8x25)
Full range of 769 Series accessories, see page 304 Full range of 769 Series accessories, see page 306 Staggered jumper,
2 insulated,
Item-Specific Accessories Item-Specific Accessories Spacing: 5 mm,
I N 24 A
End and intermediate plate, 1.1 mm thick End and intermediate plate, 1.1 mm thick from 1 to 2 780-452 100 (4x25)
orange 769-312 100 (4x25) orange 769-310 100 (4x25) from 1 to 3 780-453 100 (4x25)
gray 769-311 100 (4x25) gray 769-309 100 (4x25) from 1 to 4 780-454 100 (4x25)
from 1 to 5 780-455 50 (2x25)
Separator, oversized, 1.1 mm thick Separator, oversized, 1.1 mm thick from 1 to 6 780-456 50 (2x25)
orange 769-314 100 (4x25) orange 769-313 100 (4x25) from 1 to 7 780-457 50 (2x25)
from 1 to 8 780-458 50 (2x25)
Insulation stop, Push-in type wire jumper,
2 5 pcs/strip, 2 insulated,
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”) I N 9 A,
white 769-470 200 (8x25) wire size 0.75 mm²
Insulation stop, L = 60 mm 249-125 10
2 5 pcs/strip, L = 110 mm 249-126 10
0.25 - 0.5 mm² L = 250 mm 249-127 10
light gray 769-471 200 (8x25)
Insulation stop, Test plug module,
2 5 pcs/strip, 2 can be snapped together,
0.75 - 1 mm² 5 mm wide
dark gray 769-472 200 (8x25) gray 280-418 100 (4x25)
Protective warning marker, 1-conductor female plug,
with high-voltage symbol, black, straight
for 5 terminal blocks gray 769-101 200
yellow 280-415 100 (4x25)
Test plug, 1-conductor female plug,
with 500 mm cable, angled
2 mm Ø gray 769-101/022-000
red 210-136 50 200
2-conductor female plug
gray 769-121 100

Certification organizations can be found in the overview on pages 622 and 623.
