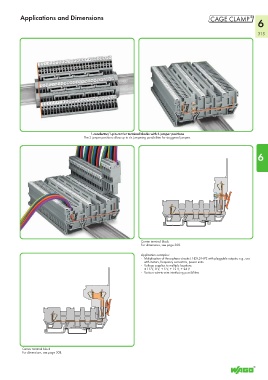

Page 317 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Applications and Dimensions 6

315

1-conductor/1-pin carrier terminal blocks with 3 jumper positions
The 3 jumper positions allow up to six jumpering possibilities for staggered jumpers.

6

Carrier terminal block
For dimensions, see page 308.

Application examples:
· Muliplication of three-phase circuits L1-L2-L3-N-PE with pluggable outputs; e.g., use
with motors, frequency converters, power units.
· Voltage supplies to multiple locations
± 15 V, 0 V, + 5 V, + 12 V, + 24 V
· Various wire-to-wire interfacing possibilities

Carrier terminal block
For dimensions, see page 308.
