P. 313

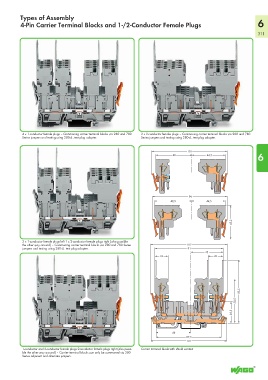

Types of Assembly
4-Pin Carrier Terminal Blocks and 1-/2-Conductor Female Plugs 6
311
4 x 1-conductor female plugs – Commoning carrier terminal blocks via 280 and 780 2 x 2-conductor female plugs – Commoning carrier terminal blocks via 280 and 780
Series jumpers and testing using 280-4.. test plug adapter. Series jumpers and testing using 280-4.. test plug adapter.
101
48 44,5 6
99
49,5 44,5
45,2
2 x 1-conductor female plugs left 1 x 2-conductor female plugs right (also possible
the other way around) – Commoning carrier terminal blocks via 280 and 780 Series 102
jumpers and testing using 280-4.. test plug adapter. 91
43
18 20
83,5
58,5
28,5
46
87,5
101
1-conductor and 2-conductor female plugs 2-conductor female plugs right (also possi- Carrier terminal block with shield contact
ble the other way around) – Carrier terminal blocks can only be commoned via 280
Series adjacent and alternate jumpers.
