P. 315
"

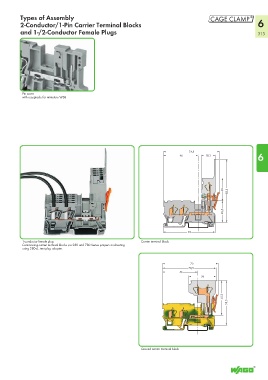

Types of Assembly
2-Conductor/1-Pin Carrier Terminal Blocks 6
and 1-/2-Conductor Female Plugs 313
Pin cover
with receptacle for miniature WSB
74,5
46 18,3 6
30 83,5
28,5
69
1-conductor female plug Carrier terminal block
Commoning carrier terminal blocks via 280 and 780 Series jumpers and testing
using 280-4.. test plug adapter.
73
70,5
46
36
45,2
58,5
Ground carrier terminal block
