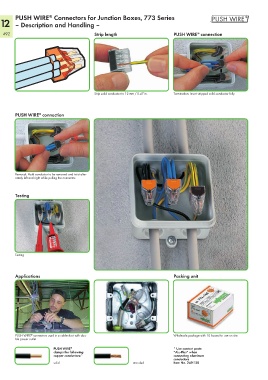

PUSH WIRE Connectors for Junction Boxes, 773 Series
®
12 – Description and Handling –
492 Strip length PUSH WIRE connection
®

Strip solid conductor to 12 mm / 0.47 in. Termination: Insert stripped solid conductor fully.

PUSH WIRE connection
®

Removal: Hold conductor to be removed and twist alter-
nately left and right while pulling the connector.

Testing

Testing

Applications Packing unit

PUSH WIRE connectors used in a cable duct with dou- Wholesale package with 10 boxes for use on site
®
ble power outlet
PUSH WIRE * Use contact paste
®
clamps the following “Alu-Plus” when
copper conductors:* connecting aluminum
conductors
solid stranded Item No. 249-130
