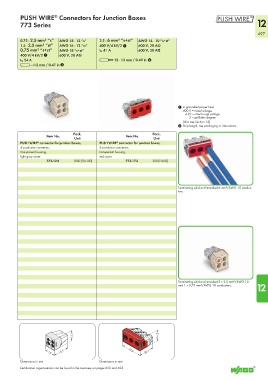

Page 499 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

$

PUSH WIRE Connectors for Junction Boxes
®
773 Series 12
497
0.75 - 2.5 mm² “s” AWG 18 - 12 “s” 2.5 - 6 mm² “s+st” AWG 14 - 10 “s+st”
1.5 - 2.5 mm² “st” AWG 16 - 12 “st” 400 V/4 kV/2 1 600 V, 20 Au
0.75 mm² “s+st” AWG 18 “s+st” I N 41 A 600 V, 30 A2
400 V/4 kV/2 1 600 V, 20 Au
I N 24 A L 12 - 13 mm / 0.49 in 2
l12 mm / 0.47 in 2

1 in grounded power lines
400 V = rated voltage
4 kV = rated surge voltage
2 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
Pack. Pack.
Item No. Item No.
Unit Unit
®
®
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
4-conductor connector, 3-conductor connector,
transparent housing, transparent housing,
light gray cover red cover
773-124 1000 (10x100) 773-173 500 (10x50)

Terminating solid and stranded 6 mm²/AWG 10 conduc-
tors.

Terminating solid and stranded 3 x 2.5 mm²/AWG 10
and 1 x 0.75 mm²/AWG 18 conductors. 12

13,1 14,2

19,5 25,6 20,1
13

Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
