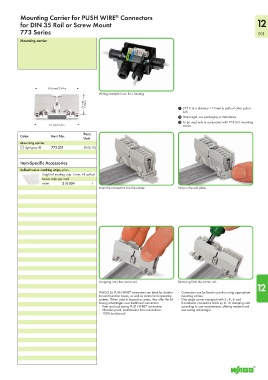

Mounting Carrier for PUSH WIRE Connectors
®
for DIN 35 Rail or Screw Mount 12
773 Series 501
Mounting carrier

59,5 mm/2.34 in
Wiring example in an Ex e housing

26 mm/ 1.02 in 1 275 V at a distance < 10 mm to parts of other poten-
tials
2 Strip length, see packaging or instructions.
3 To be used only in conjunction with 773-331 mounting
61 mm/2.4 in carrier.
Pack.
Color Item No.
Unit
Mounting carrier
light gray 4 773-331 50 (5x10)

Item-Specific Accessories
Self-adhesive marking strips, plain,
Height of marking strip: 5 mm, 48 self-ad-
hesive strips per card
white 210-334 1
Insert the connectors into the carrier. Snap in the end plate.

Snapping onto the carrier rail. Removing from the carrier rail.
12

WAGO Ex PUSH WIRE connectors are ideal for distribu- · Connectors can be fixed in position using appropriate
®
tion and junction boxes, as well as control and operating mounting carriers
systems. When used in hazardous areas, they offer the fol- · One single carrier equipped with 2-, 4-, 6- and
lowing advantages over traditional connectors: 8-conductor connectors holds up to 16 clamping units
· Time- and cost-saving PUSH WIRE connection according to user requirements, offering material and
®
· Vibration-proof, maintenance-free connections cost-saving advantages.
· 100% touch-proof
