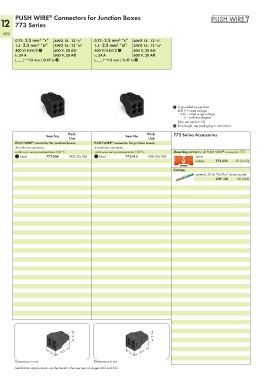

Page 498 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

$

PUSH WIRE Connectors for Junction Boxes
®
12 773 Series
496
0.75 - 2.5 mm² “s” AWG 18 - 12 “s” 0.75 - 2.5 mm² “s” AWG 18 - 12 “s”
1.5 - 2.5 mm² “st” AWG 16 - 12 “st” 1.5 - 2.5 mm² “st” AWG 16 - 12 “st”
400 V/4 kV/2 1 600 V, 20 Au 400 V/4 kV/2 1 600 V, 20 Au
I N 24 A 600 V, 20 A2 I N 24 A 600 V, 20 A2
l12 mm / 0.47 in 2 l12 mm / 0.47 in 2

1 in grounded power lines
400 V = rated voltage
4 kV = rated surge voltage
2 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
Pack. Pack. 773 Series Accessories
Item No. Item No.
Unit Unit
®
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
4-conductor connector, 4-conductor connector,
continuous service temperature 120°C continuous service temperature 150°C Mounting carrier for all PUSH WIRE connectors 773
®
black 773-504 1000 (10x100) black 773-514 1000 (10x100) Series
orange 773-332 50 (5x10)
Syringe,
contents: 20 ml “Alu-Plus” contact paste
249-130 20 (4x5)

13,1 13,1

19,5 19,5
13 13
Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
