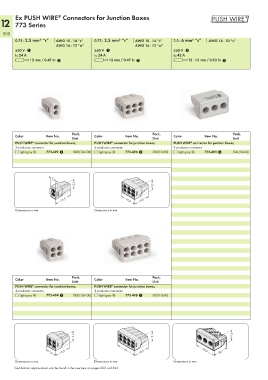

Ex PUSH WIRE Connectors for Junction Boxes
®
12 773 Series
500
0.75 - 2.5 mm² “s” AWG 18 - 14 “s” 0.75 - 2.5 mm² “s” AWG 18 - 14 “s” 2.5 - 6 mm² “s” AWG 14 - 10 “s”
AWG 16 - 12 “st” AWG 16 - 12 “st”
550 V 1 550 V 1 550 V 1
I N 24 A I N 24 A I N 42 A
l 12 mm / 0.47 in 2 l 12 mm / 0.47 in 2 l 12 - 15 mm / 0.53 in 2

Pack. Pack. Pack.
Color Item No. Color Item No. Color Item No.
Unit Unit Unit
®
®
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
2-conductor connector 6-conductor connector 3-conductor connector
light gray 4 773-492 3 1000 (10x100) light gray 4 773-496 3 500 (10x50) light gray 4 773-493 3 500 (10x50)

9,2
13,1 13,1

19,5 18,8 19,5

Dimensions in mm Dimensions in mm

Pack. Pack.
Color Item No. Color Item No.
Unit Unit
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
®
4-conductor connector 8-conductor connector
light gray 4 773-494 3 1000 (10x100) light gray 4 773-498 3 500 (10x50)

13,1 13,1 14,2

19,5 24 19,5 25,6 20,1
13
Dimensions in mm Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
