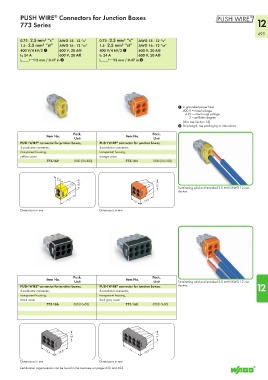

Page 497 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

$

PUSH WIRE Connectors for Junction Boxes
®
773 Series 12
495
0.75 - 2.5 mm² “s” AWG 18 - 12 “s” 0.75 - 2.5 mm² “s” AWG 18 - 12 “s”
1.5 - 2.5 mm² “st” AWG 16 - 12 “st” 1.5 - 2.5 mm² “st” AWG 16 - 12 “st”
400 V/4 kV/2 1 600 V, 20 Au 400 V/4 kV/2 1 600 V, 20 Au
I N 24 A 600 V, 20 A2 I N 24 A 600 V, 20 A2
l12 mm / 0.47 in 2 l12 mm / 0.47 in 2

1 in grounded power lines
400 V = rated voltage
4 kV = rated surge voltage
2 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
Pack. Pack.
Item No. Item No.
Unit Unit
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
®
2-conductor connector, 4-conductor connector,
transparent housing, transparent housing,
yellow cover orange cover
773-162 1000 (10x100) 773-164 1000 (10x100)

9,2
13,1 13,1 Terminating solid and stranded 2.5 mm²/AWG 12 con-
ductors.
19,5 13 19,5

Dimensions in mm Dimensions in mm

Pack. Pack.
Item No. Item No.
Unit Unit Terminating solid and stranded 2.5 mm²/AWG 12 con-
®
®
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes, ductors. 12
6-conductor connector, 8-conductor connector,
transparent housing, transparent housing,
black cover dark gray cover
773-166 500 (10x50) 773-168 500 (10x50)

13,1 13,1

19,5 24 19,5
18,8
Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
