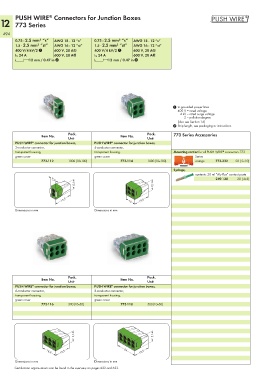

Page 496 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

$

PUSH WIRE Connectors for Junction Boxes
®
12 773 Series
494
0.75 - 2.5 mm² “s” AWG 18 - 12 “s” 0.75 - 2.5 mm² “s” AWG 18 - 12 “s”
1.5 - 2.5 mm² “st” AWG 16 - 12 “st” 1.5 - 2.5 mm² “st” AWG 16 - 12 “st”
400 V/4 kV/2 1 600 V, 20 Au 400 V/4 kV/2 1 600 V, 20 Au
I N 24 A 600 V, 20 A2 I N 24 A 600 V, 20 A2
l12 mm / 0.47 in 2 l12 mm / 0.47 in 2

1 in grounded power lines
400 V = rated voltage
4 kV = rated surge voltage
2 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
Pack. Pack. 773 Series Accessories
Item No. Item No.
Unit Unit
®
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
2-conductor connector, 4-conductor connector,
transparent housing, transparent housing, Mounting carrier for all PUSH WIRE connectors 773
®
green cover green cover Series
773-112 1000 (10x100) 773-114 1000 (10x100) orange 773-332 50 (5x10)
Syringe,
contents: 20 ml “Alu-Plus” contact paste
249-130 20 (4x5)
9,2
13,1 13,1

19,5 13 19,5

Dimensions in mm Dimensions in mm

Pack. Pack.
Item No. Item No.
Unit Unit
PUSH WIRE connector for junction boxes, PUSH WIRE connector for junction boxes,
®
®
6-conductor connector, 8-conductor connector,
transparent housing, transparent housing,
green cover green cover
773-116 500 (10x50) 773-118 500 (10x50)

13,1 13,1

19,5 24 19,5
18,8
Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
