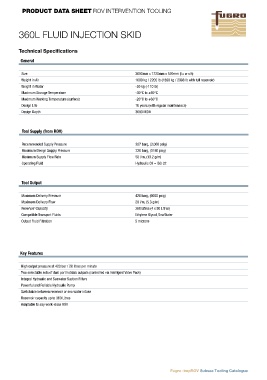

Page 123 - 4147 - Fugro Catalogue Edited 19.05.2017
P. 123
PRODUCT DATA SHEET ROV INTERVENTION TOOLING
360L FLUID INJECTION SKID
Technical Specifications
General
Size 3000mm x 1720mm x 570mm (l x w x h)
Weight in Air 1000 kg / 2205 lb (1360 kg / 2998 lb with full reservoir)
Weight in Water -50 kg (-110 lb)
Maximum Storage Temperature -30°C to +60°C
Maximum Working Temperature (surface) -20°C to +60°C
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW
Tool Supply (from ROV)
Recommended Supply Pressure 207 barg, (3,000 psig)
Maximum Design Supply Pressure 220 barg, (3190 psig)
Maximum Supply Flow Rate 50 l/m, (13.2 g/m)
Operating Fluid Hydraulic Oil – ISO 32
Tool Output
Maximum Delivery Pressure 420 barg, (6000 psig)
Maximum Delivery Flow 20 l/m, (5.3 g/m)
Reservoir Capacity 360 Litres (4 x 90 Litres)
Compatible Transport Fluids Ethylene Glycol, Sea Water
Output Fluid Filtration 5 microns
Key Features
High output pressure at 420 bar / 20 litres per minute
Two selectable sets of dual port hotstab outputs (controlled via Intelligent Valve Pack)
Integral Hydraulic and Seawater Suction Filters
Powerful and Reliable Hydraulic Pump
Switchable between reservoir or sea water intake
Reservoir capacity up to 360 Litres
Adaptable to any work-class ROV
