Downloading Measurements

8.1.1. Download EV, PD and SM Measurements

Downloading EV, PD and SM measurements follow the same process. When
downloading these measurements, first select the timeframe to download data from:

• The archives collected since the last download
• All measurements

• The archives from last month
• The archives from last week

• The archives from a custom date range
IAM displays the number of archives that will be downloaded. Press ‘Download’ to start
downloading the data.

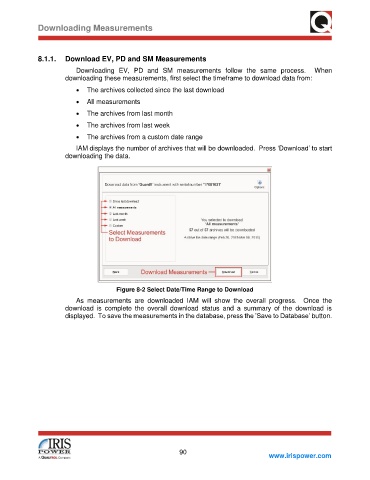

Figure 8-2 Select Date/Time Range to Download
As measurements are downloaded IAM will show the overall progress. Once the
download is complete the overall download status and a summary of the download is
displayed. To save the measurements in the database, press the ’Save to Database’ button.
