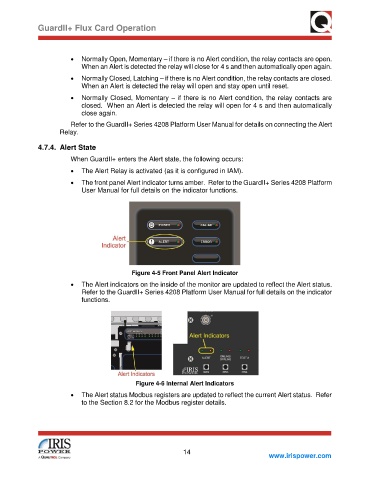

Page 20 - GuardII+ Series 4208 Platform Flux User Manual

GuardII+ Flux Card Operation

• Normally Open, Momentary – if there is no Alert condition, the relay contacts are open.
When an Alert is detected the relay will close for 4 s and then automatically open again.
• Normally Closed, Latching – if there is no Alert condition, the relay contacts are closed.
When an Alert is detected the relay will open and stay open until reset.
• Normally Closed, Momentary – if there is no Alert condition, the relay contacts are
closed. When an Alert is detected the relay will open for 4 s and then automatically
close again.

Refer to the GuardII+ Series 4208 Platform User Manual for details on connecting the Alert
Relay.

4.7.4. Alert State
When GuardII+ enters the Alert state, the following occurs:
• The Alert Relay is activated (as it is configured in IAM).

• The front panel Alert indicator turns amber. Refer to the GuardII+ Series 4208 Platform
User Manual for full details on the indicator functions.

Figure 4-5 Front Panel Alert Indicator
• The Alert indicators on the inside of the monitor are updated to reflect the Alert status.
Refer to the GuardII+ Series 4208 Platform User Manual for full details on the indicator
functions.

Figure 4-6 Internal Alert Indicators

• The Alert status Modbus registers are updated to reflect the current Alert status. Refer
to the Section 8.2 for the Modbus register details.
