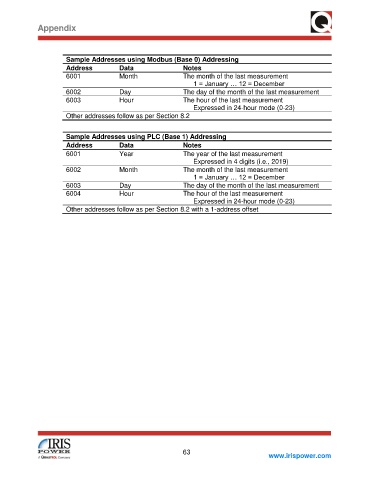

Page 69 - GuardII+ Series 4208 Platform Flux User Manual

Appendix

Sample Addresses using Modbus (Base 0) Addressing
Address Data Notes
6001 Month The month of the last measurement
1 = January … 12 = December
6002 Day The day of the month of the last measurement
6003 Hour The hour of the last measurement
Expressed in 24-hour mode (0-23)
Other addresses follow as per Section 8.2

Sample Addresses using PLC (Base 1) Addressing
Address Data Notes
6001 Year The year of the last measurement
Expressed in 4 digits (i.e., 2019)
6002 Month The month of the last measurement
1 = January … 12 = December
6003 Day The day of the month of the last measurement
6004 Hour The hour of the last measurement
Expressed in 24-hour mode (0-23)
Other addresses follow as per Section 8.2 with a 1-address offset

63
www.irispower.com
