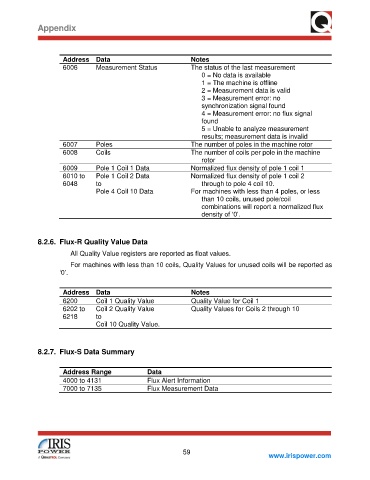

Appendix

Address Data Notes
6006 Measurement Status The status of the last measurement
0 = No data is available
1 = The machine is offline
2 = Measurement data is valid
3 = Measurement error: no
synchronization signal found
4 = Measurement error: no flux signal
found
5 = Unable to analyze measurement
results; measurement data is invalid
6007 Poles The number of poles in the machine rotor
6008 Coils The number of coils per pole in the machine
rotor
6009 Pole 1 Coil 1 Data Normalized flux density of pole 1 coil 1
6010 to Pole 1 Coil 2 Data Normalized flux density of pole 1 coil 2
6048 to through to pole 4 coil 10.
Pole 4 Coil 10 Data For machines with less than 4 poles, or less
than 10 coils, unused pole/coil
combinations will report a normalized flux
density of ‘0’.

8.2.6. Flux-R Quality Value Data

All Quality Value registers are reported as float values.
For machines with less than 10 coils, Quality Values for unused coils will be reported as
‘0’.

Address Data Notes
6200 Coil 1 Quality Value Quality Value for Coil 1
6202 to Coil 2 Quality Value Quality Values for Coils 2 through 10
6218 to
Coil 10 Quality Value.

8.2.7. Flux-S Data Summary

Address Range Data
4000 to 4131 Flux Alert Information
7000 to 7135 Flux Measurement Data
