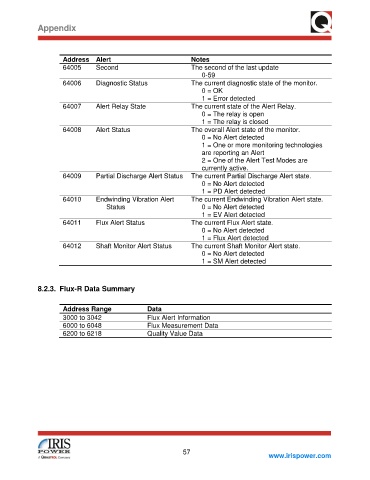

Appendix

Address Alert Notes
64005 Second The second of the last update
0-59
64006 Diagnostic Status The current diagnostic state of the monitor.
0 = OK
1 = Error detected
64007 Alert Relay State The current state of the Alert Relay.
0 = The relay is open
1 = The relay is closed
64008 Alert Status The overall Alert state of the monitor.
0 = No Alert detected
1 = One or more monitoring technologies
are reporting an Alert
2 = One of the Alert Test Modes are
currently active.
64009 Partial Discharge Alert Status The current Partial Discharge Alert state.
0 = No Alert detected
1 = PD Alert detected
64010 Endwinding Vibration Alert The current Endwinding Vibration Alert state.
Status 0 = No Alert detected
1 = EV Alert detected
64011 Flux Alert Status The current Flux Alert state.
0 = No Alert detected
1 = Flux Alert detected
64012 Shaft Monitor Alert Status The current Shaft Monitor Alert state.
0 = No Alert detected
1 = SM Alert detected

8.2.3. Flux-R Data Summary

Address Range Data
3000 to 3042 Flux Alert Information
6000 to 6048 Flux Measurement Data
6200 to 6218 Quality Value Data
