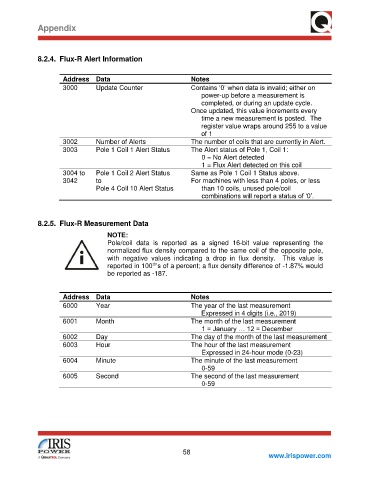

Appendix

8.2.4. Flux-R Alert Information

Address Data Notes
3000 Update Counter Contains ‘0’ when data is invalid; either on
power-up before a measurement is
completed, or during an update cycle.
Once updated, this value increments every
time a new measurement is posted. The
register value wraps around 255 to a value
of 1
3002 Number of Alerts The number of coils that are currently in Alert.
3003 Pole 1 Coil 1 Alert Status The Alert status of Pole 1, Coil 1:
0 = No Alert detected
1 = Flux Alert detected on this coil
3004 to Pole 1 Coil 2 Alert Status Same as Pole 1 Coil 1 Status above.
3042 to For machines with less than 4 poles, or less
Pole 4 Coil 10 Alert Status than 10 coils, unused pole/coil
combinations will report a status of ‘0’.

8.2.5. Flux-R Measurement Data

NOTE:
Pole/coil data is reported as a signed 16-bit value representing the
normalized flux density compared to the same coil of the opposite pole,
with negative values indicating a drop in flux density. This value is
th
reported in 100 ’s of a percent; a flux density difference of -1.87% would
be reported as -187.

Address Data Notes
6000 Year The year of the last measurement
Expressed in 4 digits (i.e., 2019)
6001 Month The month of the last measurement
1 = January … 12 = December
6002 Day The day of the month of the last measurement
6003 Hour The hour of the last measurement
Expressed in 24-hour mode (0-23)
6004 Minute The minute of the last measurement
0-59
6005 Second The second of the last measurement
0-59
