Cahyo Wibowo / JOJAPS – JOURNAL ONLINE JARINGAN PENGAJIAN SENI BINA

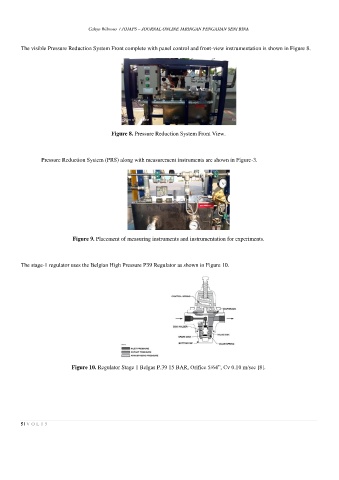

The visible Pressure Reduction System Front complete with panel control and front-view instrumentation is shown in Figure 8.
Figure 8. Pressure Reduction System Front View.
Pressure Reduction System (PRS) along with measurement instruments are shown in Figure-3.
Figure 9. Placement of measuring instruments and instrumentation for experiments.
The stage-1 regulator uses the Belgian High Pressure P39 Regulator as shown in Figure 10.
Figure 10. Regulator Stage 1 Belgas P.39 15 BAR, Orifice 5/64”, Cv 0.10 m/sec [8].
