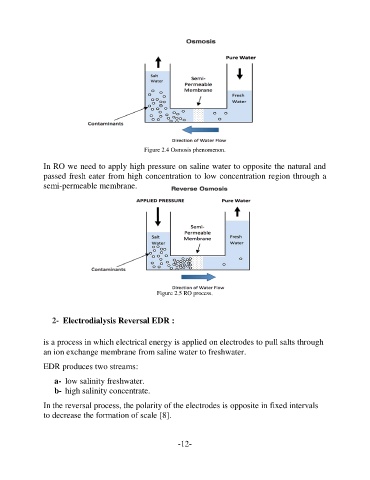

Figure 2.4 Osmosis phenomenon.
In RO we need to apply high pressure on saline water to opposite the natural and
passed fresh eater from high concentration to low concentration region through a
semi-permeable membrane.
Figure 2.5 RO process.
2- Electrodialysis Reversal EDR :
is a process in which electrical energy is applied on electrodes to pull salts through
an ion exchange membrane from saline water to freshwater.
EDR produces two streams:
a- low salinity freshwater.
b- high salinity concentrate.
In the reversal process, the polarity of the electrodes is opposite in fixed intervals
to decrease the formation of scale [8].
-12-
