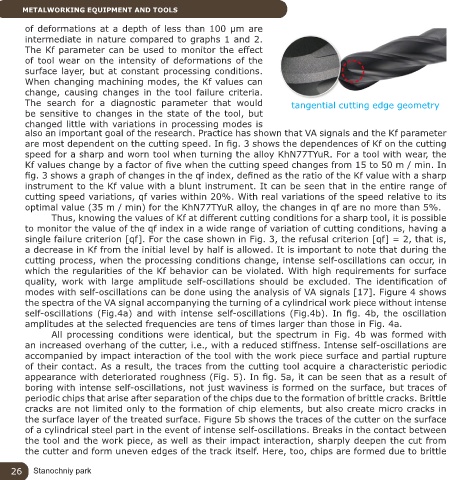

METALWORKING EQUIPMENT AND TOOLS

        of deformations at a depth of less than 100 μm are
        intermediate in nature compared to graphs 1 and 2.
        The Kf parameter can be used to monitor the effect
        of tool wear on the intensity of deformations of the
        surface layer, but at constant processing conditions.
        When changing machining modes, the Kf values can
        change,  causing  changes  in the  tool failure  criteria.
        The  search  for  a  diagnostic parameter  that  would                  tangential cutting edge geometry
        be sensitive to changes in the state of the tool, but
        changed little with variations in processing modes is
        also an important goal of the research. Practice has shown that VA signals and the Kf parameter
        are most dependent on the cutting speed. In fig. 3 shows the dependences of Kf on the cutting
        speed for a sharp and worn tool when turning the alloy KhN77TYuR. For a tool with wear, the
        Kf values change by a factor of five when the cutting speed changes from 15 to 50 m / min. In
        fig. 3 shows a graph of changes in the qf index, defined as the ratio of the Kf value with a sharp
        instrument to the Kf value with a blunt instrument. It can be seen that in the entire range of
        cutting speed variations, qf varies within 20%. With real variations of the speed relative to its
        optimal value (35 m / min) for the KhN77TYuR alloy, the changes in qf are no more than 5%.
               Thus, knowing the values of Kf at different cutting conditions for a sharp tool, it is possible
        to monitor the value of the qf index in a wide range of variation of cutting conditions, having a
        single failure criterion [qf]. For the case shown in Fig. 3, the refusal criterion [qf] = 2, that is,
        a decrease in Kf from the initial level by half is allowed. It is important to note that during the
        cutting process, when the processing conditions change, intense self-oscillations can occur, in
        which the regularities of the Kf behavior can be violated. With high requirements for surface
        quality,  work  with  large  amplitude  self-oscillations  should  be  excluded.  The  identification  of
        modes with self-oscillations can be done using the analysis of VA signals [17]. Figure 4 shows
        the spectra of the VA signal accompanying the turning of a cylindrical work piece without intense
        self-oscillations  (Fig.4a) and with  intense self-oscillations  (Fig.4b). In fig. 4b, the oscillation
        amplitudes at the selected frequencies are tens of times larger than those in Fig. 4a.
               All processing conditions were identical, but the spectrum in Fig. 4b was formed with
        an increased overhang of the cutter, i.e., with a reduced stiffness. Intense self-oscillations are
        accompanied by impact interaction of the tool with the work piece surface and partial rupture
        of their contact. As a result, the traces from the cutting tool acquire a characteristic periodic
        appearance with deteriorated roughness (Fig. 5). In fig. 5a, it can be seen that as a result of
        boring with intense self-oscillations, not just waviness is formed on the surface, but traces of
        periodic chips that arise after separation of the chips due to the formation of brittle cracks. Brittle
        cracks are not limited only to the formation of chip elements, but also create micro cracks in
        the surface layer of the treated surface. Figure 5b shows the traces of the cutter on the surface
        of a cylindrical steel part in the event of intense self-oscillations. Breaks in the contact between
        the tool and the work piece, as well as their impact interaction, sharply deepen the cut from
        the cutter and form uneven edges of the track itself. Here, too, chips are formed due to brittle
