440 Atlas of Small Animal CT and MRI

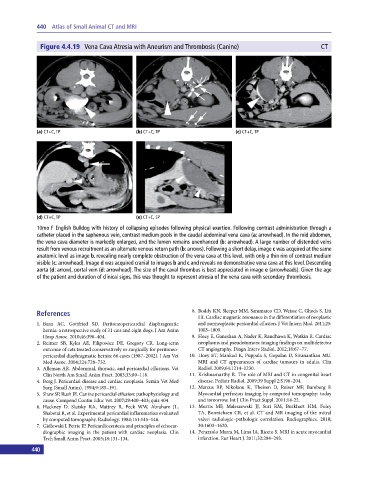

Figure 4.4.19 Vena Cava Atresia with Aneurism and Thrombosis (Canine) CT

(a) CT+C, TP (b) CT+C, TP (c) CT+C, TP

(d) CT+C, TP (e) CT+C, SP
10mo F English Bulldog with history of collapsing episodes following physical exertion. Following contrast administration through a
catheter placed in the saphenous vein, contrast medium pools in the caudal abdominal vena cava (a: arrowhead). In the mid abdomen,
the vena cava diameter is markedly enlarged, and the lumen remains unenhanced (b: arrowhead). A large number of distended veins
result from venous recruitment as an alternate venous return path (b: arrows). Following a short delay, image c was acquired at the same
anatomic level as image b, revealing nearly complete obstruction of the vena cava at this level, with only a thin rim of contrast medium
visible (c: arrowhead). Image d was acquired cranial to images b and c and reveals no demonstrative vena cava at this level. Descending
aorta (d: arrow), portal vein (d: arrowhead). The size of the caval thrombus is best appreciated in image e (arrowheads). Given the age
of the patient and duration of clinical signs, this was thought to represent atresia of the vena cava with secondary thrombosis.

References 8. Boddy KN, Sleeper MM, Sammarco CD, Weisse C, Ghods S, Litt
HI. Cardiac magnetic resonance in the differentiation of neoplastic
1. Banz AC, Gottfried SD. Peritoneopericardial diaphragmatic and nonneoplastic pericardial effusion. J Vet Intern Med. 2011;25:
hernia: a retrospective study of 31 cats and eight dogs. J Am Anim 1003–1009.
Hosp Assoc. 2010;46:398–404. 9. Hoey E, Ganeshan A, Nader K, Randhawa K, Watkin R. Cardiac
2. Reimer SB, Kyles AE, Filipowicz DE, Gregory CR. Long‐term neoplasms and pseudotumors: imaging findings on multidetector
outcome of cats treated conservatively or surgically for peritoneo­ CT angiography. Diagn Interv Radiol. 2012;18:67–77.
pericardial diaphragmatic hernia: 66 cases (1987–2002). J Am Vet 10. Hoey ET, Mankad K, Puppala S, Gopalan D, Sivananthan MU.
Med Assoc. 2004;224:728–732. MRI and CT appearances of cardiac tumours in adults. Clin
3. Alleman AR. Abdominal, thoracic, and pericardial effusions. Vet Radiol. 2009;64:1214–1230.
Clin North Am Small Anim Pract. 2003;33:89–118. 11. Krishnamurthy R. The role of MRI and CT in congenital heart
4. Berg J. Pericardial disease and cardiac neoplasia. Semin Vet Med disease. Pediatr Radiol. 2009;39 Suppl 2:S196–204.
Surg (Small Anim). 1994;9:185–191. 12. Marcus RP, Nikolaou K, Theisen D, Reiser MF, Bamberg F.
5. Shaw SP, Rush JE. Canine pericardial effusion: pathophysiology and Myocardial perfusion imaging by computed tomography: today
cause. Compend Contin Educ Vet. 2007;29:400–403; quiz 404. and tomorrow. Int J Clin Pract Suppl. 2011:14‐22.
6. Hackney D, Slutsky RA, Mattrey R, Peck WW, Abraham JL, 13. Morris MF, Maleszewski JJ, Suri RM, Burkhart HM, Foley
Shabetai R, et al. Experimental pericardial inflammation evaluated TA, Bonnichsen CR, et al. CT and MR imaging of the mitral
by computed tomography. Radiology. 1984;151:145–148. valve: radiologic–pathologic correlation. Radiographics. 2010;
7. Gidlewski J, Petrie JP. Pericardiocentesis and principles of echocar­ 30:1603–1620.
diographic imaging in the patient with cardiac neoplasia. Clin 14. Perazzolo Marra M, Lima JA, Iliceto S. MRI in acute myocardial
Tech Small Anim Pract. 2003;18:131–134. infarction. Eur Heart J. 2011;32:284–293.
