638 Atlas of Small Animal CT and MRI

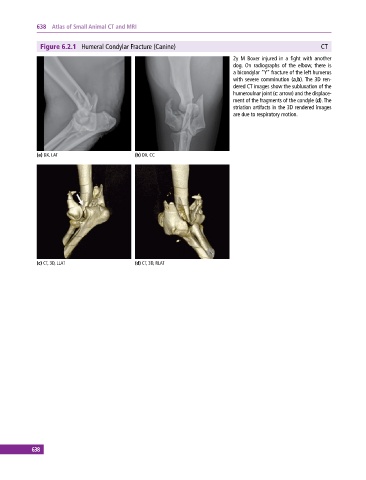

Figure 6.2.1 Humeral Condylar Fracture (Canine) CT
2y M Boxer injured in a fight with another
dog. On radiographs of the elbow, there is
a bicondylar “Y” fracture of the left humerus
with severe comminution (a,b). The 3D ren-
dered CT images show the subluxation of the
humeroulnar joint (c: arrow) and the displace-
ment of the fragments of the condyle (d). The
striation artifacts in the 3D rendered images
are due to respiratory motion.

(a) DX, LAT (b) DX, CC

(c) CT, 3D, LLAT (d) CT, 3D, RLAT
