Page 140 - Atlas of Small Animal CT and MRI

130 Atlas of Small Animal CT and MRI

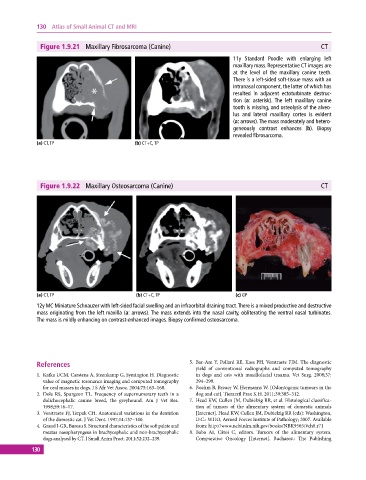

Figure 1.9.21 Maxillary Fibrosarcoma (Canine) CT
11y Standard Poodle with enlarging left
maxillary mass. Representative CT images are
at the level of the maxillary canine teeth.
There is a left‐sided soft‐tissue mass with an
intranasal component, the latter of which has
resulted in adjacent ectoturbinate destruc­
tion (a: asterisk). The left maxillary canine
tooth is missing, and osteolysis of the alveo­
lus and lateral maxillary cortex is evident
(a: arrows). The mass moderately and hetero­
geneously contrast enhances (b). Biopsy
revealed fibrosarcoma.
(a) CT, TP (b) CT+C, TP

Figure 1.9.22 Maxillary Osteosarcoma (Canine) CT

(a) CT, TP (b) CT+C, TP (c) GP
12y MC Miniature Schnauzer with left‐sided facial swelling and an infraorbital draining tract. There is a mixed productive and destructive
mass originating from the left maxilla (a: arrows). The mass extends into the nasal cavity, obliterating the ventral nasal turbinates.
The mass is mildly enhancing on contrast‐enhanced images. Biopsy confirmed osteosarcoma.

References 5. Bar‐Am Y, Pollard RE, Kass PH, Verstraete FJM. The diagnostic
yield of conventional radiographs and computed tomography
1. Kafka UCM, Carstens A, Steenkamp G, Symington H. Diagnostic in dogs and cats with maxillofacial trauma. Vet Surg. 2008;37:
value of magnetic resonance imaging and computed tomography 294–299.
for oral masses in dogs. J S Afr Vet Assoc. 2004;75:163–168. 6. Boehm B, Breuer W, Hermanns W. [Odontogenic tumours in the
2. Dole RS, Spurgeon TL. Frequency of supernumerary teeth in a dog and cat]. Tierarztl Prax K H. 2011;39:305–312.
dolichocephalic canine breed, the greyhound. Am J Vet Res. 7. Head KW, Cullen JM, Dubielzig RR, et al. Histological classifica-
1998;59:16–17. tion of tumors of the alimentary system of domestic animals
3. Verstraete FJ, Terpak CH. Anatomical variations in the dentition [Internet]. Head KW, Cullen JM, Dubielzig RR (eds): Washington,
of the domestic cat. J Vet Dent. 1997;14:137–140. D.C.: WHO, Armed Forces Institute of Pathology; 2007. Available
4. Grand J‐GR, Bureau S. Structural characteristics of the soft palate and from: http://www.ncbi.nlm.nih.gov/books/NBK9565/#ch8.r71
meatus nasopharyngeus in brachycephalic and non‐ brachycephalic 8. Baba AI, Câtoi C, editors. Tumors of the alimentary system.
dogs analysed by CT. J Small Anim Pract. 2011;52:232–239. Comparative Oncology [Internet]. Bucharest: The Publishing
130
