diameters up to 8 mm only, M6 holes are ready drilled onto the gussets as it’s the

most suitable screw size. If smaller such as M4 screws are used, washers can be
inserted to ensure it fits the diameter, though it might not be recommended as it is

not as stable as M6 screws due to its smaller diameter.

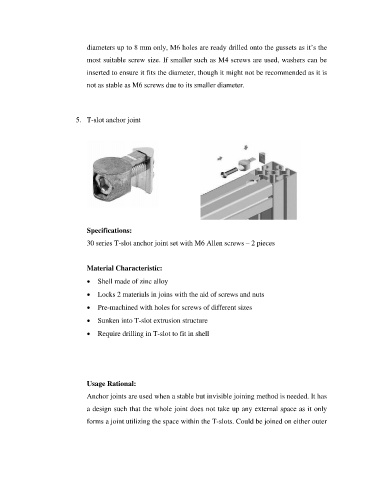

5. T-slot anchor joint

Specifications:
30 series T-slot anchor joint set with M6 Allen screws – 2 pieces

Material Characteristic:

• Shell made of zinc alloy

• Locks 2 materials in joins with the aid of screws and nuts
• Pre-machined with holes for screws of different sizes

• Sunken into T-slot extrusion structure

• Require drilling in T-slot to fit in shell

Usage Rational:

Anchor joints are used when a stable but invisible joining method is needed. It has

a design such that the whole joint does not take up any external space as it only
forms a joint utilizing the space within the T-slots. Could be joined on either outer
