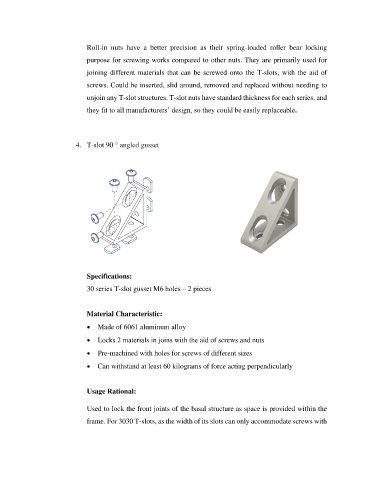

Roll-in nuts have a better precision as their spring-loaded roller bear locking

purpose for screwing works compared to other nuts. They are primarily used for
joining different materials that can be screwed onto the T-slots, with the aid of

screws. Could be inserted, slid around, removed and replaced without needing to
unjoin any T-slot structures. T-slot nuts have standard thickness for each series, and

they fit to all manufacturers’ design, so they could be easily replaceable.

4. T-slot 90 ° angled gusset

Specifications:

30 series T-slot gusset M6 holes – 2 pieces

Material Characteristic:

• Made of 6061 aluminum alloy
• Locks 2 materials in joins with the aid of screws and nuts

• Pre-machined with holes for screws of different sizes

• Can withstand at least 60 kilograms of force acting perpendicularly

Usage Rational:

Used to lock the front joints of the basal structure as space is provided within the

frame. For 3030 T-slots, as the width of its slots can only accommodate screws with
