Part VI: Advanced Modeling

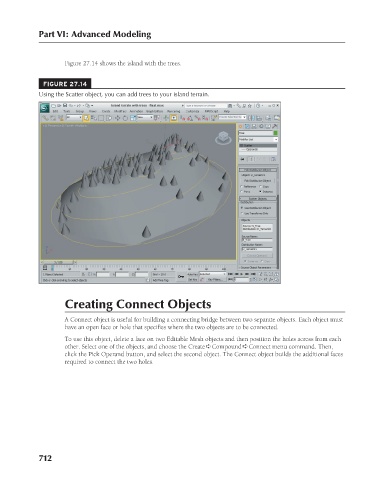

Figure 27.14 shows the island with the trees.
FIGURE 27.14
Using the Scatter object, you can add trees to your island terrain.

Creating Connect Objects

A Connect object is useful for building a connecting bridge between two separate objects. Each object must
have an open face or hole that specifies where the two objects are to be connected.
To use this object, delete a face on two Editable Mesh objects and then position the holes across from each
other. Select one of the objects, and choose the Create ➪ Compound ➪ Connect menu command. Then,
click the Pick Operand button, and select the second object. The Connect object builds the additional faces
required to connect the two holes.
