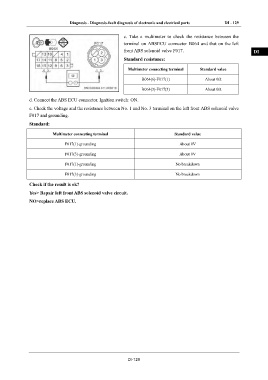

Page 183 - Foton Workshop Manual - Auman EST-M

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 129

IN
c. Take a multimeter to check the resistance between the
terminal on ABSECU connector B064 and that on the left
front ABS solenoid valve F017. DI
Standard resistance:

Multimeter connecting terminal Standard value EG

B064(6)-F017(1) About 0Ω
TR
B064(3)-F017(3) About 0Ω

d. Connect the ABS ECU connector. Ignition switch: ON. AX

e. Check the voltage and the resistance between No. 1 and No. 3 terminal on the left front ABS solenoid valve
F017 and grounding.
FR
Standard:

Multimeter connecting terminal Standard value ST

F017(1)-grounding About 0V
BR
F017(3)-grounding About 0V

F017(1)-grounding No breakdown
BW
F017(3)-grounding No breakdown
Check if the result is ok? EL
Yes> Repair left front ABS solenoid valve circuit.

NO>replace ABS ECU.

DI-129
