33-18

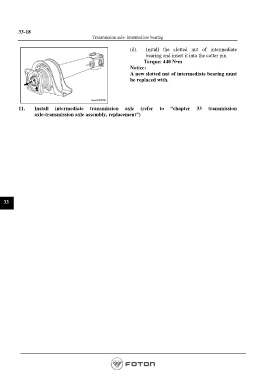

Transmission axle- intermediate bearing

(d). Install the slotted nut of intermediate
bearing and insert it into the cotter pin.
Torque: 440 N•m
Notice:
A new slotted nut of intermediate bearing must
be replaced with.

11. Install intermediate transmission axle (refer to “chapter 33 transmission
axle-transmission axle assembly, replacement”)

33
