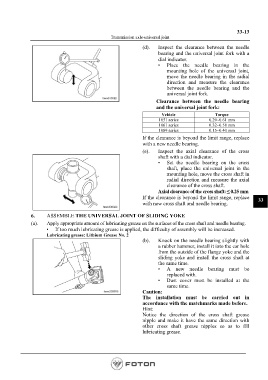

P. 1031

33-13
                                                  Transmission axle-universal joint
                                                                (d).    Inspect the clearance between  the  needle
                                                                       bearing and the universal joint fork with a
                                                                       dial indicator.
                                                                       •   Place the  needle bearing  in the
                                                                           mounting hole of the  universal  joint,
                                                                           move the needle bearing in the radial
                                                                           direction and measure  the  clearance
                                                                           between the needle bearing  and  the
                                                                           universal joint fork.
                                                                      Clearance  between the  needle bearing
                                                                      and the universal joint fork:
                                                                         Vehicle                 Torque
                                                                        1051 series           0.29~0.61 mm
                                                                        1061 series           0.32~0.58 mm
                                                                        1089 series           0.15~0.40 mm
                                                                If the clearance is beyond the limit range, replace
                                                                with a new needle bearing.
                                                                (e).    Inspect the axial  clearance of the cross
                                                                       shaft with a dial indicator.
                                                                       •   Set the needle bearing on the cross
                                                                           shaft, place the universal joint  in the
                                                                           mounting hole, move the cross shaft in
                                                                           radial direction and measure the axial
                                                                           clearance of the cross shaft.
                                                                       Axial clearance of the cross shaft: ≤ 0.25 mm
                                                                If the clearance is beyond the limit range, replace   33
                                                                with new cross shaft and needle bearing.

               6.     ASSEMBLE THE UNIVERSAL JOINT OF SLIDING YOKE
               (a).    Apply appropriate amount of lubricating grease on the surfaces of the cross shaft and needle bearing.
                      •   If too much lubricating grease is applied, the difficulty of assembly will be increased.
                      Lubricating grease: Lithium Grease No. 2
                                                                (b).    Knock on the needle bearing slightly with
                                                                       a rubber hammer, install it into the ear hole
                                                                       from the outside of the flange yoke and the
                                                                       sliding yoke and install the  cross shaft at
                                                                       the same time.
                                                                       •   A new needle bearing  must  be
                                                                           replaced with.
                                                                       •   Dust  cover  must  be installed at  the
                                                                           same time.
                                                                Caution:
                                                                The installation must be carried out  in
                                                                accordance with the matchmarks made before.
                                                                Hint:
                                                                Notice the  direction of the cross  shaft grease
                                                                nipple and make it have the same direction with
                                                                other cross shaft  grease nipples so as to fill
                                                                lubricating grease.
