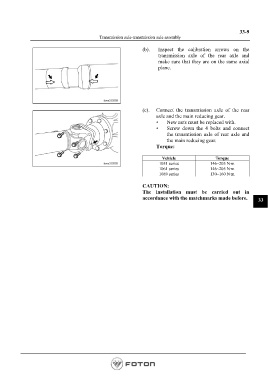

P. 1027

33-9
                                             Transmission axle-transmission axle assembly

                                                                (b).    Inspect the calibration arrows on the
                                                                       transmission axle of the  rear axle and
                                                                       make sure that they are on the same axial
                                                                       plane.










                                                                (c).    Connect the transmission  axle of  the  rear
                                                                      axle and the main reducing gear.
                                                                      •    New nuts must be replaced with.
                                                                      •    Screw down the 4  bolts  and connect
                                                                           the transmission axle of rear axle and
                                                                           the main reducing gear.
                                                                      Torque:

                                                                         Vehicle                 Torque
                                                                        1051 series           146~205 N·m
                                                                        1061 series           146~205 N·m
                                                                        1089 series           130~160 N·m

                                                                CAUTION:
                                                                The installation must be carried out  in
                                                                accordance with the matchmarks made before.         33
