51-48
Heater and AC-AC Pipe

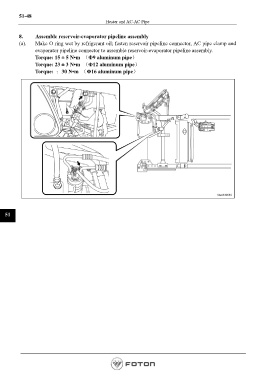

8. Assemble reservoir-evaporator pipeline assembly
(a). Make O ring wet by refrigerant oil; fasten reservoir pipeline connector, AC pipe clamp and
evaporator pipeline connector to assemble reservoir-evaporator pipeline assembly.
Torque: 15 ± 5 N•m （Φ9 aluminum pipe）
Torque: 23 ± 3 N•m （Φ12 aluminum pipe）
Torque: ：30 N•m （Φ16 aluminum pipe）
