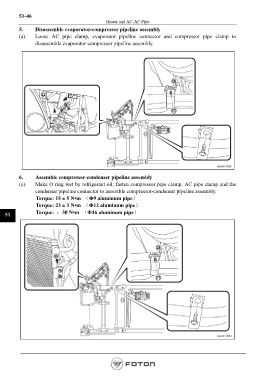

51-46
Heater and AC-AC Pipe
5. Disassemble evaporator-compressor pipeline assembly
(a). Loose AC pipe clamp, evaporator pipeline connector and compressor pipe clamp to
disassemble evaporator-compressor pipeline assembly.
6. Assemble compressor-condenser pipeline assembly
(a). Make O ring wet by refrigerant oil; fasten compressor pipe clamp, AC pipe clamp and the
condenser pipeline connector to assemble compressor-condenser pipeline assembly.
Torque: 15 ± 5 N•m （Φ9 aluminum pipe）
Torque: 23 ± 3 N•m （Φ12 aluminum pipe）
51 Torque: ：30 N•m （Φ16 aluminum pipe）
