51-42
Heater and AC-AC Pipe

AC pipe

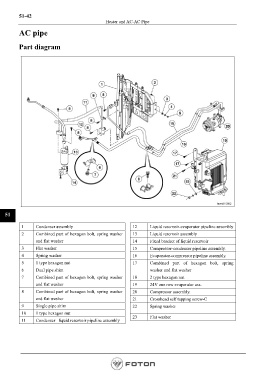

Part diagram

51

1 Condenser assembly 12 Liquid reservoir-evaporator pipeline assembly
2 Combined part of hexagon bolt, spring washer 13 Liquid reservoir assembly
and flat washer 14 Fixed bracket of liquid reservoir
3 Flat washer 15 Compressor-condenser pipeline assembly.
4 Spring washer 16 Evaporator-compressor pipeline assembly.
5 1 type hexagon nut 17 Combined part of hexagon bolt, spring
6 Dual pipe shim washer and flat washer
7 Combined part of hexagon bolt, spring washer 18 2 type hexagon nut
and flat washer 19 24V one row evaporator ass.
8 Combined part of hexagon bolt, spring washer 20 Compressor assembly.
and flat washer 21 Crosshead self tapping screw-C
9 Single pipe shim 22 Spring washer
10 1 type hexagon nut 23 Flat washer
11 Condenser –liquid reservoir pipeline assembly
