51-44
Heater and AC-AC Pipe

Replacement

Notess:
There should be cover on the end face of AC pipe before connection for protection; especially
the liquid reservoir is with high moisture absorption ability so that it should be assembled at
last. Coat compressor oil on the top of connection pipe where O ring sits to avoid O ring from
damage. Inlet and outlet of evaporator, and the AC pipe of high pressure side should be
wrapped by heat insulation material to avoid the heat influence from environment.
1. Discharge refrigerant (refer to “Chapter 51 Heater and AC-Refrigerant,
Replacement”)

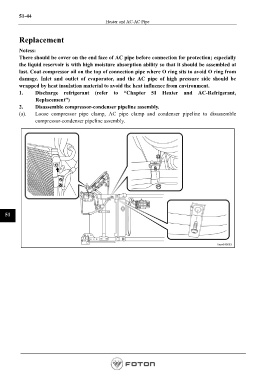

2. Disassemble compressor-condenser pipeline assembly.
(a). Loose compressor pipe clamp, AC pipe clamp and condenser pipeline to disassemble
compressor-condenser pipeline assembly.

51
