51-45

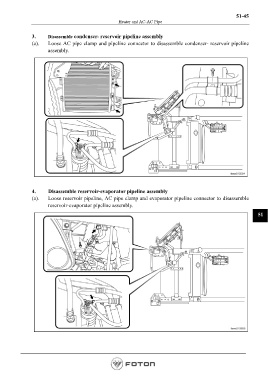

Heater and AC-AC Pipe
3. Disassemble condenser- reservoir pipeline assembly
(a). Loose AC pipe clamp and pipeline connector to disassemble condenser- reservoir pipeline
assembly.
4. Disassemble reservoir-evaporator pipeline assembly
(a). Loose reservoir pipeline, AC pipe clamp and evaporator pipeline connector to disassemble
reservoir-evaporator pipeline assembly.
51
