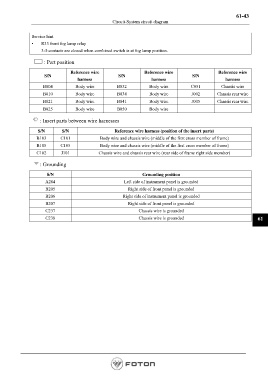

61-43
Circuit-System circuit diagram

Service hint
• R33 front fog lamp relay
3-5:contacts are closed when combined switch is at fog lamp position.

: Part position

Reference wire Reference wire Reference wire
S/N S/N S/N
harness harness harness
B004 Body wire B032 Body wire C051 Chassis wire
B010 Body wire B034 Body wire J002 Chassis rear wire
B021 Body wire B041 Body wire J005 Chassis rear wire

B025 Body wire B050 Body wire

: Insert parts between wire harnesses

S/N S/N Reference wire harness (position of the insert parts)
B103 C101 Body wire and chassis wire (middle of the first cross member of frame)
B105 C105 Body wire and chassis wire (middle of the first cross member of frame)
C102 J101 Chassis wire and chassis rear wire (rear side of frame right side member)

: Grounding

S/N Grounding position
A204 Left side of instrument panel is grounded
B205 Right side of front panel is grounded
B206 Right side of instrument panel is grounded
B207 Right side of front panel is grounded
C237 Chassis wire is grounded
C238 Chassis wire is grounded 61
