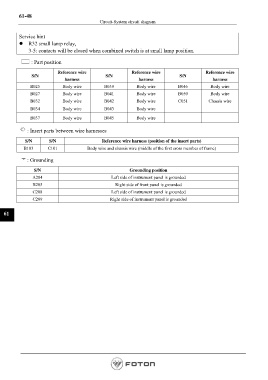

61-48
Circuit-System circuit diagram

Service hint
z R32 small lamp relay,
3-5: contacts will be closed when combined switch is at small lamp position.

: Part position

Reference wire Reference wire Reference wire
S/N S/N S/N
harness harness harness
B025 Body wire B039 Body wire B046 Body wire
B027 Body wire B041 Body wire B050 Body wire
B032 Body wire B042 Body wire C051 Chassis wire
B034 Body wire B043 Body wire

B037 Body wire B045 Body wire

: Insert parts between wire harnesses

S/N S/N Reference wire harness (position of the insert parts)
B103 C101 Body wire and chassis wire (middle of the first cross member of frame)

: Grounding
S/N Grounding position
A204 Left side of instrument panel is grounded
B205 Right side of front panel is grounded
C208 Left side of instrument panel is grounded
C209 Right side of instrument panel is grounded

61
