Page 1324 - Workshop Manual - Aumark (BJ1051)
P. 1324
61-52

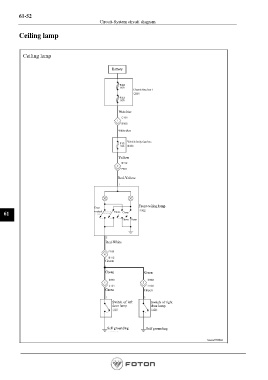

Circuit-System circuit diagram
Ceiling lamp
Ceiling lamp
Battery
Chassis fuse box 1
White-Blue
White-Blue
Vehicle body fuse box
Yellow
Red-Yellow
Front ceiling lamp
Door
61 control Close Close
Open Open
Red-White
Green
Green Green
Green Green
Switch of left Switch of right
door lamp door lamp
Self grounding Self grounding
