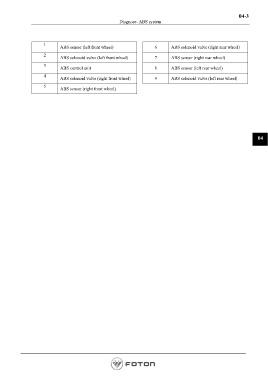

04-3
Diagnose- ABS system
1
ABS sensor (left front wheel) 6 ABS solenoid valve (right rear wheel)
2
ABS solenoid valve (left front wheel) 7 ABS sensor (right rear wheel)
3
ABS control unit 8 ABS sensor (left rear wheel)
4
ABS solenoid valve (right front wheel) 9 ABS solenoid valve (left rear wheel)
5 ABS sensor (right front wheel)
04
