04-7

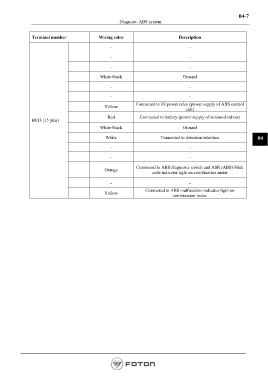

Diagnose- ABS system

Terminal number Wiring color Description

- -
- -

- -

White-black Ground
- -

- -
Connected to IG power relay (power supply of ABS control
Yellow
unit)
Red Connected to battery (power supply of solenoid valves)
B013 (15 pins)

White-black Ground

White Connected to detection interface 04
- -

- -
Connected to ABS diagnostic switch and ASR (ABS) blink
Orange
code indicator light on combination meter
- -

Connected to ABS malfunction indicator light on
Yellow
combination meter
