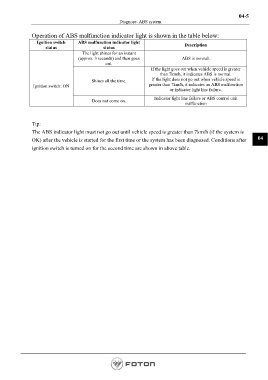

P. 149
04-5
Diagnose- ABS system
Operation of ABS malfunction indicator light is shown in the table below:
Ignition switch ABS malfunction indicator light Description
status status
The light shines for an instant
(approx. 3 seconds) and then goes ABS is normal.
out.
If the light goes out when vehicle speed is greater
than 7km/h, it indicates ABS is normal.
Shines all the time. If the light does not go out when vehicle speed is
Ignition switch: ON greater than 7km/h, it indicates an ABS malfunction
or indicator light line failure.
Indicator light line failure or ABS control unit
Does not come on.
malfunction
Tip:
The ABS indicator light must not go out until vehicle speed is greater than 7km/h (if the system is
OK) after the vehicle is started for the first time or the system has been diagnosed. Conditions after 04
ignition switch is turned on for the second time are shown in above table.
