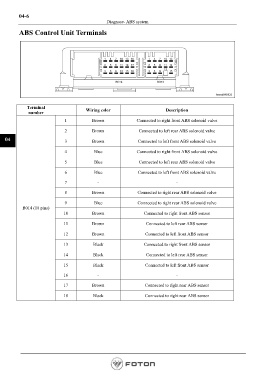

P. 150
04-6
Diagnose- ABS system
ABS Control Unit Terminals
Terminal Wiring color Description
number
1 Brown Connected to right front ABS solenoid valve
2 Brown Connected to left rear ABS solenoid valve
04 3 Brown Connected to left front ABS solenoid valve
4 Blue Connected to right front ABS solenoid valve
5 Blue Connected to left rear ABS solenoid valve
6 Blue Connected to left front ABS solenoid valve
7 - -
8 Brown Connected to right rear ABS solenoid valve
9 Blue Connected to right rear ABS solenoid valve
B014 (18 pins)
10 Brown Connected to right front ABS sensor
11 Brown Connected to left rear ABS sensor
12 Brown Connected to left front ABS sensor
13 Black Connected to right front ABS sensor
14 Black Connected to left rear ABS sensor
15 Black Connected to left front ABS sensor
16 - -
17 Brown Connected to right rear ABS sensor
18 Black Connected to right rear ABS sensor
