P. 153
04-9

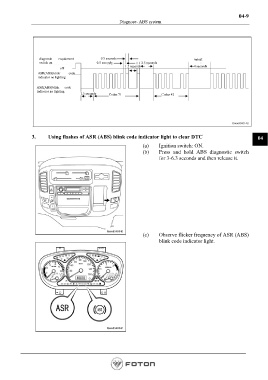

Diagnose- ABS system
diagnosis requiement 0.5 seconds repeat
switch on 0.5 seconds 2.5 seconds
1.5 seconds 4 seconds
off
ASR(ABS)blink code
indicator no lighting
ASR(ABS)blink code
indicator no lighting
1.5 seconds Codes 71 Codes 42
3. Using flashes of ASR (ABS) blink code indicator light to clear DTC 04
(a) Ignition switch: ON.
(b) Press and hold ABS diagnostic switch
for 3-6.3 seconds and then release it.
(c) Observe flicker frequency of ASR (ABS)
blink code indicator light.
