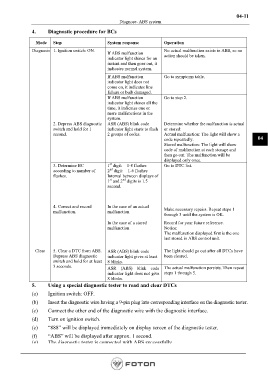

                                                      Diagnose- ABS system

               4.     Diagnostic procedure for BCs

                 Mode    Step                    System response          Operation
               Diagnosis 1. Ignition switch: ON.                          No actual malfunction exists in ABS, so no
                                                 If ABS malfunction       action should be taken.
                                                 indicator light shines for an
                                                 instant and then goes out, it
                                                 indicates normal system.
                                                 If ABS  malfunction      Go to symptoms table.
                                                 indicator light does not
                                                 come on, it indicates line
                                                 failure or bulb damaged.
                                                 If ABS  malfunction      Go to step 2.
                                                 indicator light shines all the
                                                 time, it indicates one or
                                                 more malfunctions in the
                                                 system.
                         2. Depress ABS diagnostic  ASR (ABS) blink code   Determine whether the malfunction is actual
                         switch and hold for 1   indicator light starts to flash   or stored:
                         second.                 2 groups of codes.       Actual malfunction: The light will show a
                                                                          code repeatedly.                         04
                                                                          Stored malfunction: The light will show
                                                                          code of malfunction at each storage and
                                                                          then go out. The malfunction will be
                                                                          displayed only once.
                                                  st
                         3.  Determine BC        1  digit:    1-8 flashes   Go to DTC list.
                                                  nd
                         according to number of  2  digit:    1-6 flashes
                         flashes.                Interval between displays of
                                                        nd
                                                  st
                                                 1  and 2  digits is 1.5
                                                 second.

                         4. Correct and record   In the case of an actual
                         malfunction.            malfunction              Make necessary repairs. Repeat steps 1
                                                                          through 3 until the system is OK.
                                                 In the case of a stored   Record for your future reference.
                                                 malfunction              Notice:
                                                                          The malfunction displayed first is the one
                                                                          last stored in ABS control unit.


                 Clear   5. Clear a DTC from ABS.  ASR (ABS) blink code   The light should go out after all DTCs have
                         Depress ABS diagnostic  indicator light gives at least   been cleared.
                         switch and hold for at least  8 blinks.
                         3 seconds.              ASR  (ABS) blink code  The actual malfunction persists. Then repeat
                                                 indicator light does not give  steps 1 through 5.
                                                 8 blinks.
               5.     Using a special diagnostic tester to read and clear DTCs
               (a)    Ignition switch: OFF.

               (b)    Insert the diagnostic wire having a 9-pin plug into corresponding interface on the diagnostic tester.
               (c)    Connect the other end of the diagnostic wire with the diagnostic interface.

               (d)    Turn on ignition switch.
               (e)    “888” will be displayed immediately on display screen of the diagnostic tester.
               (f)    “ABS” will be displayed after approx. 1 second.
               (g)    The diagnostic tester is connected with ABS successfully.
