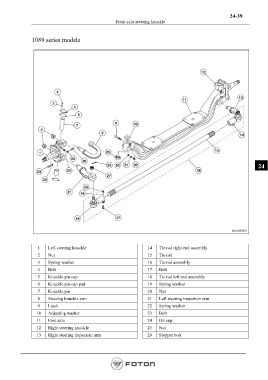

Front axle-steering knuckle
1089 series models
24
1 Left steering knuckle 14 Tie rod right end assembly
2 Nut 15 Tie rod
3 Spring washer 16 Tie rod assembly
4 Bolt 17 Bolt
5 Knuckle pin cap 18 Tie rod left end assembly
6 Knuckle pin cap pad 19 Spring washer
7 Knuckle pin 20 Nut
8 Steering knuckle arm 21 Left steering trapezium arm
9 Latch 22 Spring washer
10 Adjusting washer 23 Bolt
11 Fore axle 24 Oil cup
12 Right steering knuckle 25 Nut
13 Right steering trapezium arm 26 Stopper bolt
