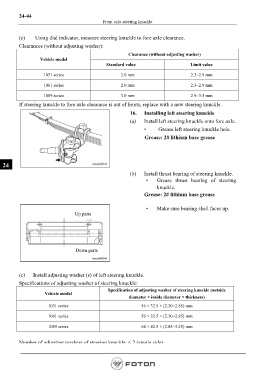

24-44
Front axle-steering knuckle

(e) Using dial indicator, measure steering knuckle to fore axle clearance.
Clearances (without adjusting washer):
Clearance (without adjusting washer)
Vehicle model
Standard value Limit value

1051 series 2.0 mm 2.3~2.9 mm

1061 series 2.0 mm 2.3~2.9 mm

1089 series 3.0 mm 2.9~3.5 mm
If steering knuckle to fore axle clearance is out of limits, replace with a new steering knuckle.
16. Installing left steering knuckle

(a) Install left steering knuckle onto fore axle.
• Grease left steering knuckle hole.
Grease: 2# lithium base grease

24
(b) Install thrust bearing of steering knuckle.
• Grease thrust bearing of steering
knuckle.
ٛ Grease: 2# lithium base grease
ٛ
• Make sure bearing shell faces up.
Up parts

Down parts

(c) Install adjusting washer (s) of left steering knuckle.

Specifications of adjusting washer of steering knuckle:
Specification of adjusting washer of steering knuckle (outside
Vehicle model
diameter × inside diameter × thickness)
1051 series 56 × 32.5 × (2.30~2.85) mm

1061 series 56 × 32.5 × (2.30~2.85) mm

1089 series 64 × 42.5 × (2.85~3.45) mm

Number of adjusting washers of steering knuckle: ≤ 2 (single side)
